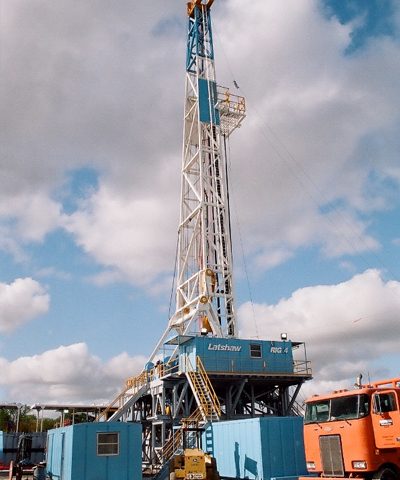

Latshaw Rig 4
Stacked :: 1000HP :: Top Drive :: 1300HP Pumps < Back to Rig Fleet List
| MAJOR SYSTEMS | SECONDARY SYSTEMS |
|---|---|
| Drawworks Continental Emsco D3 Type II 1000HP low low rated 525,000# Hoisting Capacity ( 10 ) lines w/twin GE 752 DC motor input | Baylor Elmagco 6032 Auxiliary Brake 1‐1/4"WireRope 6 x 19 EIP IWRC |
| Prime Power Schlumberger-Omron SCR System, 3 Generator Bays, 3 SCR Bays 3‐Caterpillar 3512B w/ Kato 1365 KW AC Gen Sets | Cold Start air system, primary Rig Air supply, floor hoisting systems Fuel Capacity 18,000gal & Water Storage Capacity 500bbl |
| Mast / Substructure Dreco 142' 550,000# Hook load with 25' Box on Box, Crown Block 6‐42" Sheaves 1‐1/4" Groove Fastline 1‐ 50" 1‐1/4" Grooved | Rotary load 550,000# Set Back 330,000 Tool Pusher and Crew quarters, rig matting boards w/Veristic Walking System consisting of 4 hydraulic feet w/2.4 million lb capacity. Walks w/full rated setback capacity. Range 150ft x 40ft on x/y axis |
| Top Drive - Traveling Block - Pipe Handling Varco TDS-11 AC Top Drive 500 Ton YC315 350 Ton SJPetro 27 1/2" Rotary /Drwks Driven NOV ST‐ 80 Iron Roughneck and IAT rotating MH | Martin‐Decker Type E, Pump SPM & PSI, Top Drive control, SCR system controls Manual Tongs, elevators, slips and clamps for Latshaw supplied DS |
| Mud Pumps 2 ‐ Continental Emsco FB‐1600, 7,500# Wp PSI Fluid Ends and delivery system driven by twin GE 752 DC motors | Church Energy 3,000PSI Accumulator, 120 gal, 5 station w/remote 9‐Brandt Max 2000 Mud Adjatators |
| Mud System 2 ‐Tank system (1,200bbl Capacity) 2 ‐ National 285P Linear Motion Shale Shakers | NOV Brandt Desander 2‐ 12" Cones w/5 x 6 Centrifugal driven by 100HP elect mtr NOV Brandt DeSilter 12‐4" Cones w/ 6 x 8 Centrifugal driven by 100HP elect mtr |
| BOP Stack Description 13‐5/8" 5,000# Annular 13‐5/8" 5,000# Double Ram | Type FC 4‐1/1"6 5,000# x 2‐1/16 5,000# Choke Manifold NOV Brandt D‐1000‐C Degasser |
