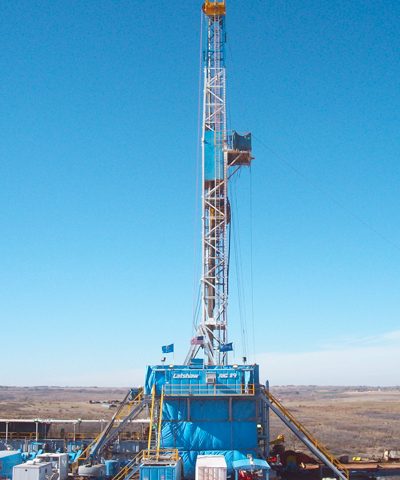

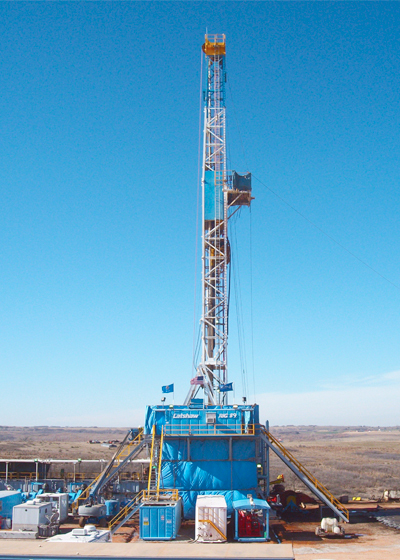

Latshaw Rig 9
Permian Basin :: 1700HP :: Top Drive :: 1600HP Pumps :: Dual Fuel :: Walking System
< Back to Rig Fleet List
| MAJOR SYSTEMS | SECONDARY SYSTEMS |
|---|---|
| Drawworks Skytop Brewster NE‐95 1700HP 719,000# (10) lines, 828,000# (12) lines, Hoisting Capacity, w/twin GE 752 DC motor input | Baylor Elmagco 7040 Auxilary Brake 1‐3/8" WireRope 6 x 19 EIP IWRC |
| Prime Power Schlumberger-Omron/ SCR System, 3 Generator Bays, 4 SCR Bays 3‐Caterpillar 3512B w/ Kato 1365 KW AC Gen Sets- Dual Fuel Capable | Cold Start air system, primary Rig Air supply, floor hoisting systems Fuel Capacity 18,000gal & Water Storage Capacity 500bbl |
| Mast / Substructure Skytop 142' 1,000,000# Hook load with 29' Box type Crown Block 6‐50" Sheaves 1‐3/8" Groove, Fastline 1‐50" 1‐3/8" Grooved | Rotary load 1,000,000# Set Back 600,000# Tool Pusher and Crew quarters, rig matting boards w/Veristic Walking System consisting of 4 hydraulic feet w/2.4 million lb capacity. Walks w/full rated setback capacity. Range 150ft x 40ft on x/y axis |
| Top Drive - Traveling Block - Pipe Handling CanRig Model 1250AC VF 500Ton Gardner Denver 550 Ton Block SJPetro 27 1/2" Rotary /Drwks Driven Varco ST‐ 80 Iron Roughneck & IAT rotating MH | Martin‐Decker Type E, Pump SPM & PSI, Top Drive control, SCR system controls Manual Tongs, elevators, slips and clamps for Latshaw supplied DS |
| Mud Pumps 2 ‐ American Block K-1600 Triplex 7,500#WP PSI Fluid Ends and delivery system, Driven by (2) GE 752 DC motors | Church Energy 3,000PSI Accumulator, 180 gal, 6 station w/remote 8‐NOV Max2000 10HP Mud agitators |
| Mud System 2 ‐ Tank system (1,200bbl Capacity) 2 ‐ National 285P Linear Motion Shale Shakers | NOV Brandt Desander 3‐ 10" Cones w/6 x 8 Centrifugal driven by 100HP Motor NOV DeSilter 20‐4" Cones w/ 6 x 8 Centrifugal driven by 100HP Mtr |
| BOP Stack Description 13 5/8" 5,000# Annular 13 5/8" 5,000# Double Ram, | Cameron Type FC 3‐1/16" 5,000#WP x 2‐1/16" 5,000#WP Choke Manifold NOV Brandt D‐1000‐C Degasser |
