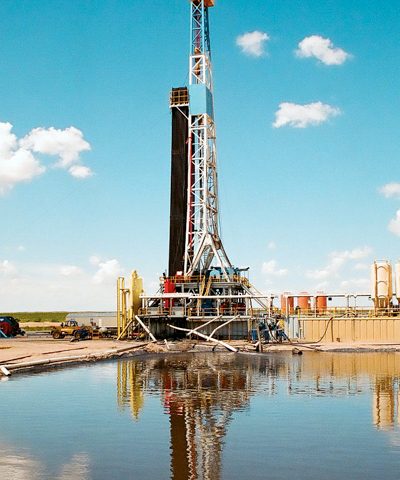

Latshaw Rig 7
Permian Basin :: 1500HP :: Top Drive :: 1600HP Pumps :: Walking System < Back to Rig Fleet List
| MAJOR SYSTEMS | SECONDARY SYSTEMS |
|---|---|
| Drawworks Continental Emsco C1 Type II 1500HP Low Low rated 704,900# Hoisting Capacity (10) lines with twin GE 752 DC motor input | Baylor Elmagco 7040 Auxiliary Brake 1-3/8" WireRope 6 x 19 EIP IWRC |
| Prime Power Schlumberger-Omron/ SCR System, 3 Generator Bays, 4 SCR Bays 3‐Caterpillar 3512B w/ Kato 1365 KW AC Gen Sets | Cold Start air system, primary Rig Air supply, floor hoisting systems Fuel Capacity 18,000 gal and Water Storate Capacity 500bbl |
| Mast / Substructure Branham 142' 1,000,000# Hook load with 25' Box on Box Crown Block 6‐61" Sheaves 1‐3/8" Groove Fastline 1‐ 61" 1‐3/8“ Grooved | Rotary Slip load 1,000,000#, Set Back 600,000# Tool Pusher and Crew Quarters, rig matting boards w/Veristic Walking System consisting of 4 hydraulic feet w/2.4 million lb capacity. Walks w/full rated setback capacity. Range 150ft x 40ft on x/y axis |
| Top Drive - Traveling Block - Pipe Handling NOV TDS11 SA VF AC 500Ton 500 Ton Traveling Block SJPetro 27-1/2” Rotary/Drwks Driven Varco ST 80 Iron Roughneck and IAT rotating MH | Martin-Decker Type #, Pump SPM and PSI, Top Drive control, SCR system controls Manual Tongs, elevators, slips and clamps for Latshaw-supplied DS |
| Mud Pumps 2 Lewco WH-1612 Triplex, 1600 HP 7,500# WP PSI Fluid Ends and delivery system driven by twin GE 752 DC motors | Church Energy 3,000PSI Accumulator, 180 gal, 6 station w/remote 9-NOV Max2000 10HP Mud agitators |
| Mud System 2‐Tank system (1,200bbl Capacity) Twin National 285P Linear Motion Shale Shakers | NOV Brandt Desander 3‐ 10" Cones w/6 x 8 x 11 Centrifugal driven by 100HP elect mtr NOV DeSilter 20‐4" Cones w/ 6 x 8 x 14 Centrifugal driven by 100HP elect mtr |
| BOP Stack Description 13 5/8” 5,000# WP Annular 13 5/8” 10,000# WP Double Ram 13 5/8” 10,000# WP Single Ram | CE 4-1/1"6 10,000#WP x 2-1/16" 10,000#WP Chope Manifold H2S Trim NOV Brandt D-1000-C Degasser |
