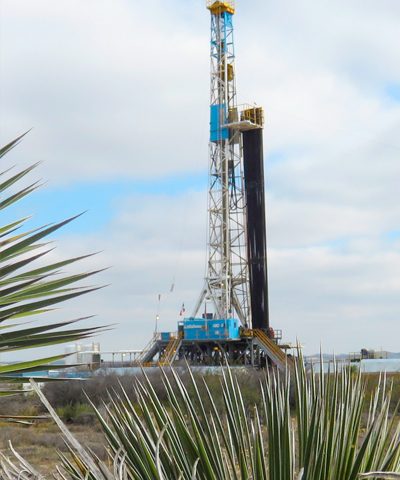

Latshaw Rig 6

Latshaw Rig 6

Stacked :: 1000HP  :: Top Drive :: 1300HP Pumps         < Back to Rig Fleet List

MAJOR SYSTEMSSECONDARY SYSTEMS
Drawworks
Oilwell 760‐E 1000HP
low low rated 468,000#
( 10 ) lines Hoisting Capacity,
w/twin GE 752 DC motor input
Wichita Air acutuated/water‐cooled 236 disc brake
1‐1/4"WireRope 6 x 19 EIP IWRC
Prime Power
Schlumberger-Omron/ SCR System,
3 Generator Bays, 3 SCR Bays,
3‐Caterpillar 3512B w/ Kato 1365 KW AC Gen Sets
Cold Start air system, primary Rig Air supply, floor hoisting systems
Fuel Capacity 18,000gal & Water Storage Capacity 500bbl
Mast / Substructure
Branham 142' 600,000# Hook load with 20' Box on Box
Crown Block 6‐42" Sheaves 1‐1/4" Groove
Fastline 1‐ 55" 1‐1/4" Grooved
Rotary Slip load 600,000# , Set Back 360,000#
Tool Pusher and Crew quarters, rig matting boards
Top Drive - Traveling Block - Pipe Handling
CanRig Model 6027 VF AC 250 Ton
National 500 Ton Block
27 1/2" Rotary /Drwks Driven
Varco ST 80 Iron Roughneck and IAT rotating MH
Martin‐Decker Type E, Pump SPM & PSI, Top Drive control, SCR system controls
Manual Tongs, elevators, slips and clamps for Latshaw supplied DS
Mud Pumps
2 ‐ Ideco T‐1300 1300HP Triplex,
5,000# Wp PSI Fluid Ends and delivery system driven by
twin GE 752 DC motors
Church Energy 3,000PSI Accumulator, 180 gal, 6 station w/remote
7‐NOV Mud Adjatators
Mud System
2‐Tank system (1,200bbl Capacity)
Twin National 285P Linear Motion Shale Shakers
NOV Brandt Desander 3‐ 10" Cones w/6 x 8 x 11 Centrifugal driven by 100HP elect mtr
NOV DeSilter 20‐4" Cones w/ 6 x 8 x 14 Centrifugal driven by 100HP elect mtr
BOP Stack Description
11" 5,000# Annular
11"10,000# Double Ram
Cameron Type FC
4‐1/1"6 10,000#WP x 2‐1/16 10,000#WP Choke Manifold H2S Trim
NOV Brandt D‐1000‐C Degasser
