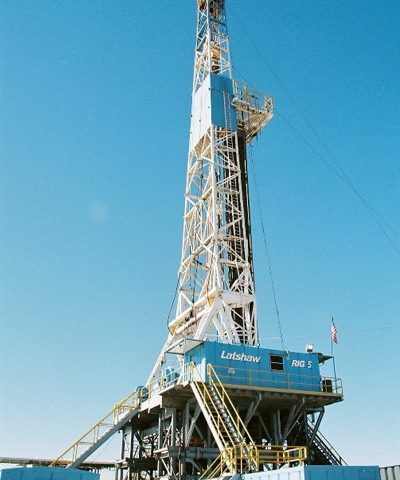

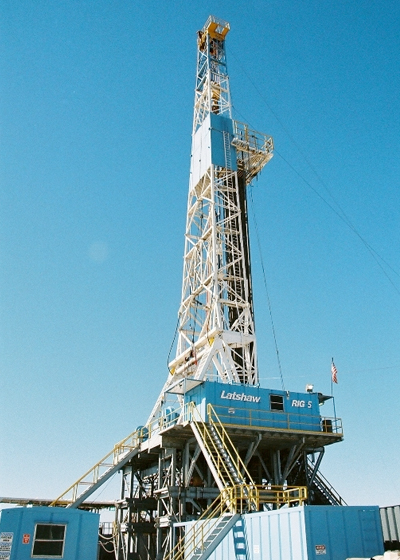

Latshaw Rig 5
Permian Basin :: 1500HP :: Top Drive :: 1600HP Pumps :: Walking System < Back to Rig Fleet List
| MAJOR SYSTEMS | SECONDARY SYSTEMS |
|---|---|
| Drawworks National 110‐UE 1500HP low low rated 605,000# Hoisting Capacity (10 lines ) w/twin GE 752 DC motor input | Wichita Air acutuated/water‐cooled 336 disc brake 1‐3/8"WireRope 6 x 19 EIP IWRC |
| Prime Power Schlumberger-Omron/IDM SCR System, 3 Generator Bays, 4 SCR Bays 3‐Caterpillar 3512B w/ Kato 1365 KW AC Gen Sets | Cold Start air system, primary Rig Air supply, floor hoisting systems Fuel Capacity 18,000gal & Water Storage Capacity 500bbl |
| Mast / Substructure Pyramid 142' 1,000,000# Hook load with 25' Box on Box, Crown Block 6‐60" Sheaves 1‐3/8" Groove Fastline 1‐ 60" 1‐3/8" Grooved | Rotary Slip load 1,000,000# , Set Back 600,000# Tool Pusher and Crew quarters, rig matting boards w/Veristic Walking System consisting of 4 hydraulic feet w/2.4 million lb capacity. Walks w/full rated setback capacity. Range 150ft x 40ft on x/y axis |
| Top Drive - Traveling Block - Pipe Handling CanRig Model 1035 VF AC 350 Ton National 500 Ton Block Oilwell B 27 1/2" Rotary /Drwks Driven Varco ST 80 Iron Roughneck and IAT rotating MH | Martin‐Decker Type E, Pump SPM & PSI, Top Drive control, SCR system controls Manual Tongs, elevators, slips and clamps for Latshaw supplied DS |
| Mud Pumps 2 ‐ HH-1600 1600HP Triplex w/7,500# WP Fluid ends and delivery system driven by twin GE 752 DC motors | Church Energy 3,000PSI Accumulator, 180 gal, 6 station w/remote 7‐NOV Mud Adjatators |
| Mud System 2‐Tank system (1,200bbl Capacity) Twin National 285P Linear Motion Shale Shakers | NOV Brandt Desander 3‐ 10" Cones w/6 x 8 x 11 Centrifugal, driven by 100HP elect mtr NOV DeSilter 20‐4" Cones w/ 6 x 8 x 14 Centrifugal, driven by 100HP elect mtr |
| BOP Stack Description 13‐5/8" 5,000# Annular 13‐5/8" 5,000# Double Ram | Camron type FC 4‐1/1"6 10,000#WP x 2‐1/16 10,000#WP Choke Manifold, H2S Trim NOV Brandt D‐1000‐C Degasser |
