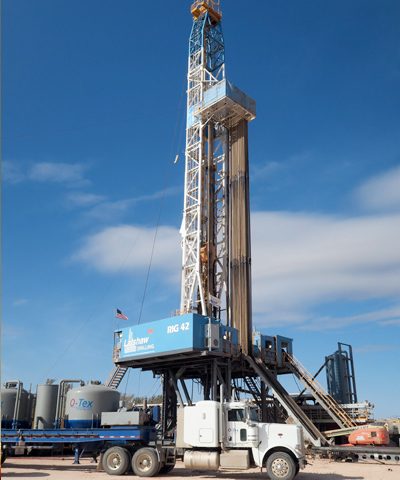

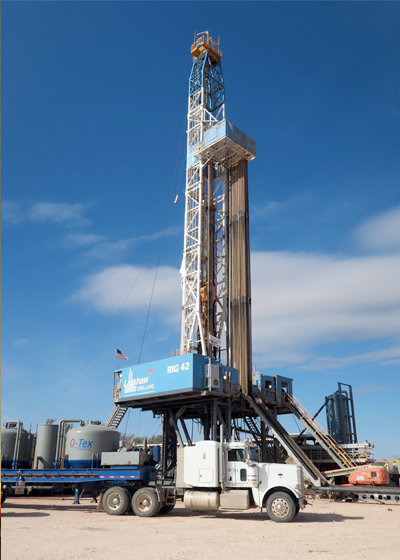

Latshaw Rig 42
Anadarko Basin :: 1500HP :: Top Drive :: 1600HP Pumps :: Walking System :: Dual Fuel
< Back to Rig Fleet List
| MAJOR SYSTEMS | SECONDARY SYSTEMS |
|---|---|
| Drawworks NOV ADS‐10SD 1500HP AC drwks with ReGen Braking capacity NOV software limit 625,000# Hoisting Capacity ( 10 ) lines w/2‐AC 1150HP motor input/Gear drive | Air/ Actuated, Park Disc 1‐3/8"WireRope 6 x 19 EIP IWRC |
| Prime Power NOV DrillForce LT VFD "Ideal" System with Amphion Drillers control cabin 3‐Caterpillar 3512‐C w/Kato 1265 KW AC Generators | Cold Start air system, primary Rig Air supply, floor hoisting systems Fuel Capacity 20,000gal & Water Storage Capacity 400bbl |
| Mast / Substructure NOV 142' 750,000# Hook load, 25' Slingshot Crown Block 5‐50" Sheaves 1‐3/8" Groove Fastline 1‐60" 1‐3/8" Groove | Rotary load 750,000# Set Back 500,000 Tool Pusher and Crew quarters, rig matting boards NOV Steel Tow Walking System |
| Top Drive - Traveling Block - Pipe Handling NOV TDS 11SA AC 500 Ton Top Drive NOV 500 Ton Traveling Block NOV 37 1/2" Rotary Table w/400HP AC motor NOV ST‐80CL pipe handling system & CanRig Hydraulic Catwalk | NOV Steel Toe Walking systems incorporated within lower substructure base Manual Tongs, elevators, slips and clamps for Latshaw supplied DS |
| Mud Pumps 2‐National 12‐P‐160 1600HP Triplex, w/7,500#WP PSI Fluid Ends and delivery system, each driven by 2‐1150Hp AC motors | Church Energy 3,000PSI Accumulator, 18/0 gal, 6 station w/remote 6‐NOV MA‐10 10HP Mud Agitatiors |
| Mud System 2 ‐Tank system 2 ‐NOV King Cobra Hydro Shale Shakers | NOV DSN‐3V‐10CTX 3‐10" cone Desander 1500gpm NOV Model DSLR‐20GG‐4CTX Desilter 20‐4" cone Desilter |
| BOP Stack Description 13 5/8" 5,000# Annular 13 5/8" 5,000# Double Ram | Type FC 4‐1/1"6 10,000# x 3‐1/8" 10,000# Choke Manifold NOV Model DG‐10 Degasser |
