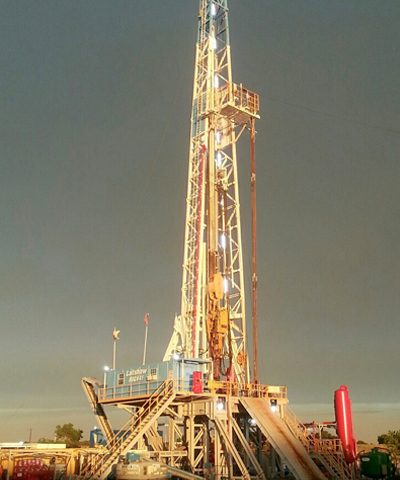

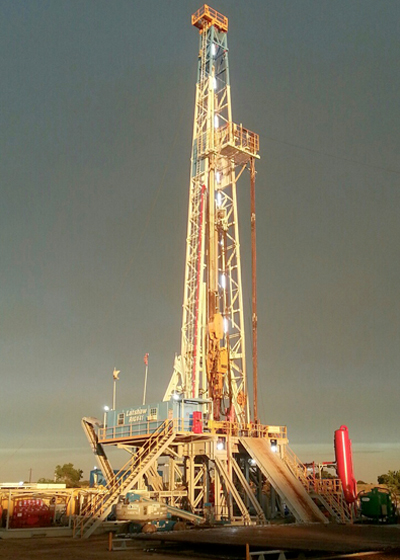

Latshaw Rig 41
Anadarko Basin :: 1000HP :: Top Drive :: 1600HP Pumps :: Skid System | < Back to Rig Fleet List
| MAJOR SYSTEMS | SECONDARY SYSTEMS |
|---|---|
| Drawworks Continental Emsco D‐3 Type II 1000HP Low low rated 500,000# Hoisting Capacity ( 10 ) lines. w/twin GE 752 DC motor input | Baylor Elmagco 6032 Elec Brake 1 1/4" Wire Rope EIP IWRC |
| Prime Power Schlumberger-Omron SCR System, 3 Generator Bays, 4 SCR Bays 3‐Caterpillar 3512 1101 KW Kato Generators | Cold Start air system, primary Rig Air supply, floor hoisting systems Fuel Capacity 18,000gal & Water Storage Capacity 500bbl |
| Mast / Substructure DSI 142' 650,000# Hook load, 22' Slingshot Crown Block 6‐50" Sheaves 1‐1/4" Groove Fastline 1‐60" 1‐1/4" Groove Hydraulic Jack Skid System | Rotary load 650,000# Set Back 400,000 Tool Pusher and Crew quarters, rig matting boards |
| Top Drive - Traveling Block - Pipe Handling CanRig 6027 AC Drive 275 Ton YC225 250 Ton Traveling Block Cont‐Emsco 27 1/2" Rotary /Hydraulic driven NOV ST-80 pipe handling system | Martin‐Decker Type E, Pump SPM & PSI, Top Drive control, SCR system controls Manual Tongs, elevators, slips and clamps for Latshaw supplied DS |
| Mud Pumps 2 ‐RSF1600 1600 HP Triplex w/5,000#WP Fluid ends and delivery system each driven by 2‐GE‐752 DC motors | Church Energy 3,000PSI Accumulator, 120 gal, 5 station w/remote 5‐Oilworks 15HP Mud Agitatiors |
| Mud System 2 ‐Tank system (1,000bbl Capacity), 2 ‐Vortex Orbital model 3000 Shale Shakers | Derrick 2‐ 12" Cones w/5 x 6 Centrifugal driven by 100HP elect mtr Derrick DeSilter 12‐4" Cones w/ 6 x 8 Centrifugal driven by 100HP elect mtr |
| BOP Stack Description 11" 5,000# Annular 11" 5,000# Double Ram | Type FC 4‐1/1"6 5,000# x 2‐1/16 5,000# Choke Manifold two manual Chokes |
