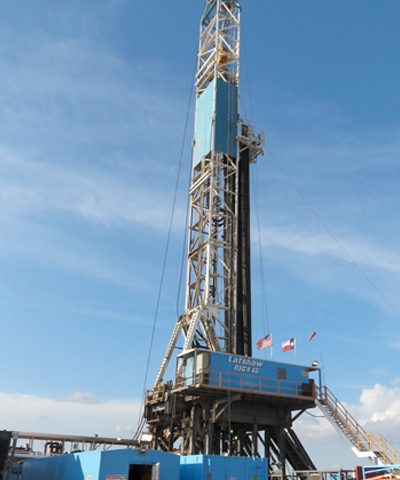

Latshaw Rig 40

Latshaw Rig 40

Anadarko Basin :: 1500HP :: Top Drive :: 1600HP Pumps      < Back to Rig Fleet List

MAJOR SYSTEMSSECONDARY SYSTEMS
Drawworks
Cameron-Lewco LDW750K 1500HP
rated 648,000#
Hoisting Capacity ( 10 ) Lines,
750,000# Hoisting Capacity ( 12 ) lines.
w/2‐AC 1150HP motor input/Gear drive
Hydraulic Actuated, Park Disc
1‐3/8"WireRope 6 x 19 EIP IWRC
Prime Power
Schlumberger-Omron
4 Segment VFD system
3‐Caterpillar 3512's w/Kato 1365 KW AC Generators
Cold Start air system, primary Rig Air supply, floor hoisting systems
Fuel Capacity 18,000gal & Water Storage Capacity 500bbl
Mast / Substructure
DSI 152' 750,000# Hook load, 25' Slingshot
Crown Block 6‐50" Sheaves 1‐3/8" Groove
Fastline 1‐60" 1‐3/8" Groove
Rotary load 750,000# Set Back 500,000
Tool Pusher and Crew quarters, rig matting boards
Top Drive - Traveling Block - Pipe Handling
CanRig 1250 AC Drive 500Ton
American Block B60F500 500Ton
RT 27527 1/2" Rotary Table w/400HP AC motor
CanRig TM‐80 Iron Roughneck
Martin‐Decker Type E, Pump SPM & PSI, Top Drive control, SCR system controls
Manual Tongs, elevators, slips and clamps for Latshaw supplied DS
Mud Pumps
2‐Lewco WH‐1612 1600 HP Triplex
w/5,000# Fluid ends and delivery system
each driven by 2‐1150Hp AC motors
3,000PSI Accumulator, 180 gal, 6 station w/remote
6‐Oilworks 15HP Mud Agitatiors
Mud System
2 ‐Tank system (1,200bbl Capacity), 110bbl TT
2 ‐Vortex Orbital model 3000 Shale Shakers
Derrick 2‐ 10" Cones w/5 x 6 Centrifugal driven by 100HP elect mtr
Derrick DeSilter 16‐4" Cones w/ 6 x 8 Centrifugal driven by 100HP elect mtr
BOP Stack Description
13 5/8" 5,000# Annular
13 5/8" 10,000# Double Ram
Type FC
4‐1/1"6 10,000# x 2‐1/16 10,000# Choke Manifold
Derrick Vaccuflow 500 Degasser
