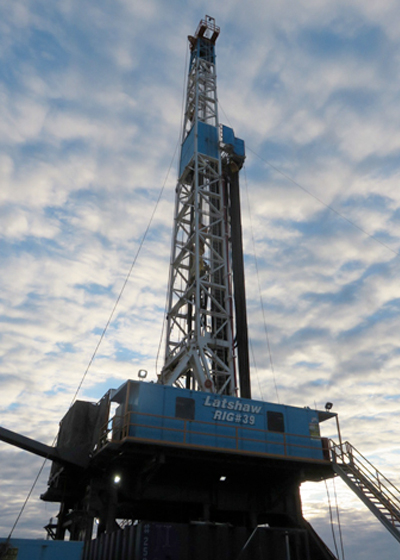

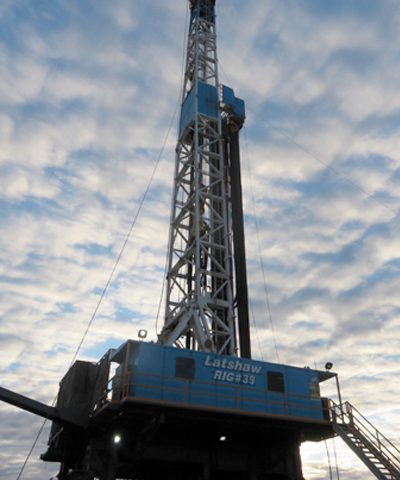

Latshaw Rig 39
Anadarko Basin :: 1000HP :: Top Drive :: 1300HP Pumps :: Skid System | < Back to Rig Fleet List
| MAJOR SYSTEMS | SECONDARY SYSTEMS |
|---|---|
| Drawworks Continental Emsco D‐3 Type II 1000HP Low low rated 500,000# Hoisting Capacity ( 10 ) lines. w/twin GE 752 DC motor input | Wichita Air acutuated/water‐cooled 236 disc brake 1‐1/4"Wire Rope 6 x 19 EIP IWRC |
| Prime Power Schlumberger-Omron SCR System, 3 Generator Bays, 4 SCR Bays 3‐QSK50‐DR 1480HP driving 1226KW Kato Generators | Cold Start air system, primary Rig Air supply, floor hoisting systems Fuel Capacity 15,000gal & Water Storage Capacity 500bbl |
| Mast / Substructure DSI 142' 650,000# Hook load, 22' Slingshot Crown Block 6‐50" Sheaves 1‐1/4" Groove Fastline 1‐60" 1‐1/4" Groove Hydraulic Jack Skid System | Rotary load 650,000# Set Back 400,000 Tool Pusher and Crew quarters, rig matting boards |
| Top Drive - Traveling Block - Pipe Handling Varco TDS 11 AC 500Ton YC315 350 Ton Traveling Block Cont‐Emsco 27 1/2" Rotary /Hydraulic Driven NOV ST 80C pipe handling system | Martin‐Decker Type E, Pump SPM & PSI, Top Drive control, SCR system controls Manual Tongs, elevators, slips and clamps for Latshaw supplied DS |
| Mud Pumps 2 ‐ NOV FD-1600 1600HP w/5,000#WP PSI Fluid Ends and delivery system, each driven by 2‐GE‐752 DC motors | Church Energy 3,000PSI Accumulator, 120 gal, 5 station w/remote 5‐Oilworks 15HP Mud Agitatiors |
| Mud System 2 ‐Tank system (1,200bbl Capacity) 2 ‐NOV King Cobra Hydro Shale Shakers | Derrick 2‐ 12" Cones w/5 x 6 Centrifugal driven by 100HP elect mtr Derrick DeSilter 12‐4" Cones w/ 6 x 8 Centrifugal driven by 100HP elect mtr |
| BOP Stack Description 11" 5,000# Annular 11" 5,000# Double Ram | Cameron Type FC 4‐1/1"6 5,000# x 2‐1/16 5,000# Choke Manifold two manual Chokes |
