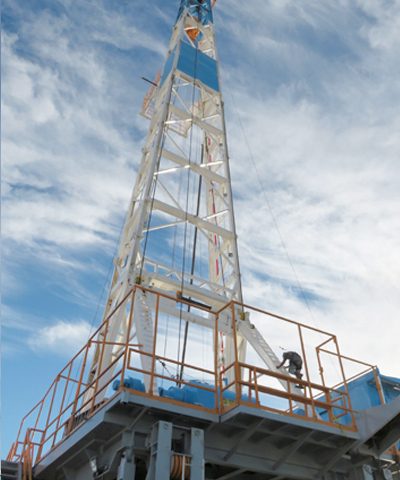

Latshaw Rig 37

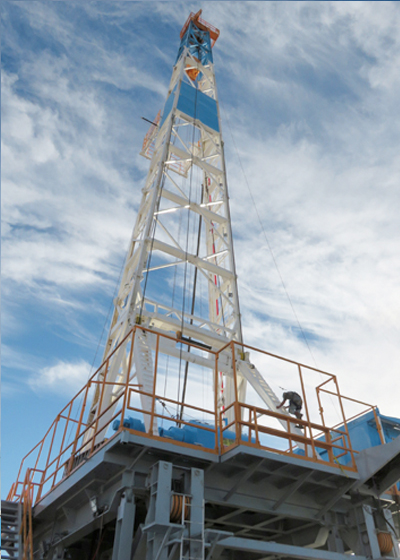

Latshaw Rig 37

Arkoma Basin :: 1000HP :: Top Drive :: 1300HP Pumps     < Back to Rig Fleet List

MAJOR SYSTEMSSECONDARY SYSTEMS
Drawworks
Continental Emsco D3 Type II 1000HP
Low low rated 525,000#
Hoisting Capacity ( 10 ) lines.
w/twin GE 752 DC motor input
Baylor Elmagco 5250 Elec Brake
1‐1/4"Wire Rope 6 x 19 EIP IWRC
Prime Power
Schlumberger-Omron SCR System,
4 Generator Bays/ SCR Bays
4‐Caterpillar 3508B w/Kato 900KW AC Generators
Cold Start air system, primary Rig Air supply, floor hoisting systems
Fuel Capacity 18,000gal & Water Storage Capacity 500bbl
Mast / Substructure
DSI 142' 650,000# Hook load, 22' Slingshot
Crown Block 6‐50" Sheaves 1‐1/4" Groove
Fastline 1‐60" 1‐1/4" Groove
Hydraulic Jack Skid System
Rotary load 650,000# Set Back 400,000
Tool Pusher and Crew quarters, rig matting boards
Top Drive - Traveling Block - Pipe Handling
Varco TDS-11 AC Top Drive, 500Ton.
McKissick 300 ton
SJPetro 27 1/2" Rotary /Hydraulic Driven
NOV ST‐ 80 Iron Roughneck and IAT rotating MH
Martin‐Decker Type E, Pump SPM & PSI, Top Drive control,
SCR system controls
Manual Tongs, elevators, slips and clamps for Latshaw supplied DS
Mud Pumps
2 ‐ NOV FD-1600 1600 HP Triplex
w/5,000#WP PSI Fluid Ends and delivery system,
each driven by 2 GE‐752 DC motors
Church Energy 3,000PSI Accumulator, 120 gal, 5 station w/remote
5‐Oilworks 15HP Mud Agitatiors
Mud System
2 ‐Tank system (1,200bbl Capacity)
2 ‐ Vortex Orbital 3000 Linear Shale Shakers
Derrick 2‐ 12" Cones w/5 x 6 Centrifugal driven by 100HP elect mtr
Derrick DeSilter 12‐4" Cones w/ 6 x 8 Centrifugal driven by 100HP elect mtr
BOP Stack Description
11" 5,000# Annular
11" 5,000# Double Ram
Cameron Type FC
4‐1/1"6 5,000# x 2‐1/16 5,000# Choke Manifold
Two manual Chokes
