Latshaw Rig 36

Latshaw Rig 36

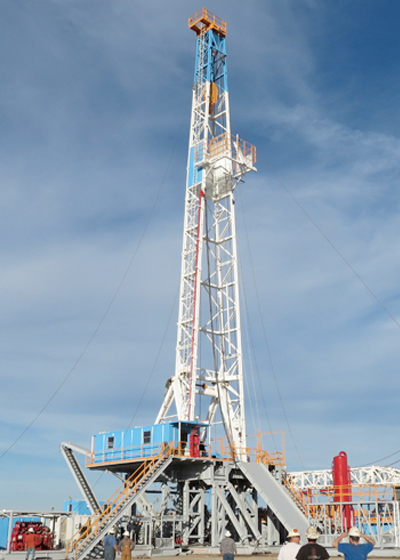

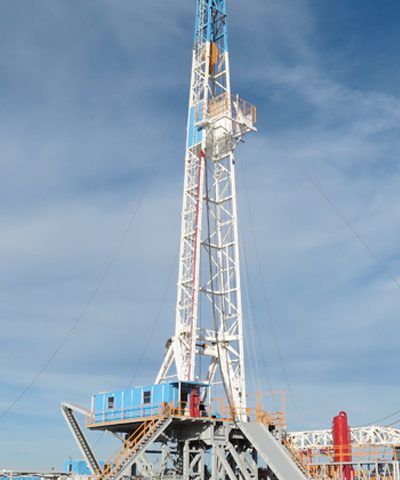

Stacked :: 1000HP :: Top Drive :: 1300HP Pumps :: Skidding system   |  < Back to Rig Fleet List

MAJOR SYSTEMSSECONDARY SYSTEMS
Drawworks
RG JC40DB w/Hitachi Regen/disc
rated 600,000# Hoisting Capacity ( 10 ) lines.
Driven by Hitachi 1240HP AC motor
Disc Parking Brake
1‐1/4" Wire Rope 6 x 19 EIP IWRC
Prime Power
Schlumberger-Omron
4 segment VFD system
3‐Cummins KTA 50 w/AvK 1256 KW AC Generators
Cold Start air system, primary Rig Air supply, floor hoisting systems
Fuel Capacity 16,500gal & Water Storage Capacity 500bbl
Mast / Substructure
DSI 142' 650,000# Hook load, 22' Slingshot
Crown Block 6‐50" Sheaves 1‐1/4" Groove
Fastline 1‐60" 1‐1/4" Groove
Hydraulic Jack Skid System
Rotary Load 650,000# Set Back 400,000#
Tool Pusher and Crew quarters rig matting boards
Top Drive - Traveling Block - Pipe Handling
Varco TDS 10SA VF AC 250 Ton
YC225 250 Ton Traveling Block
SJpetro 27 1/2" Rotary Table
NOV ST 80 pipe handling system
Bear Weight Indicator, Pump SPM & PSI, Top Drive control,
AC system controls & MU/BO Torque
Manual Tongs, elevators, slips and clamps for Latshaw supplied DS
Mud Pumps
2 Continental Emsco FB-1300 1300 HP,
5,000#WP PSI Fluid Ends and delivery system
Driven by 1230 HP AC motor
3,000PSI Accumulator, 120 gal 5 station w/remote
5‐Oilworks 15HP agitatiors
Mud System
2 ‐ Tank system (1,000bbl active Capacity)
2 - NOV King Cobra Shale Shakers
Derrick Desander 2‐ 12" Cones w/6 x 8 Centrifugal
driven by 100HP Motor
Derrick 12‐4" Cones w/ 6 x 8 Centrifugal driven by 100HP Mtr
BOP Stack Description
11" 5,000# Annular
11" 5,000# Double Ram
Type FC
4 1/16" 5M x 3 1/8" 5M Choke Manifold
Twin manual chokes

Download_Rigspecs-2
