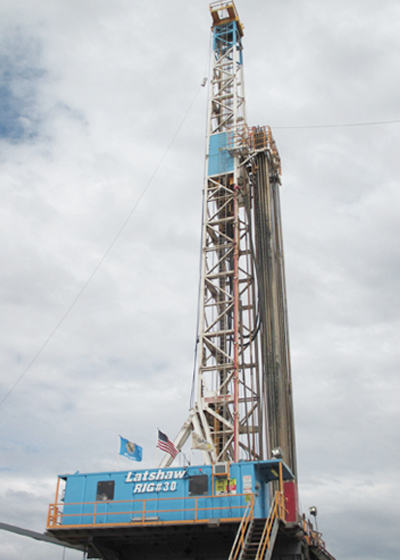

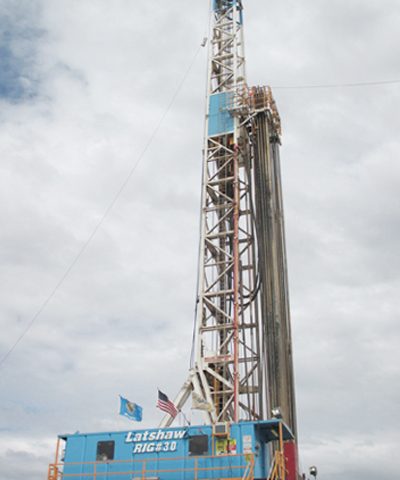

Latshaw Rig 30
Stacked :: 1000HP :: Top Drive :: 1300HP Pumps :: Skid System | < Back to Rig Fleet List
| MAJOR SYSTEMS | SECONDARY SYSTEMS |
|---|---|
| Drawworks National 80UE 1000HP 500,000# Hoisting Capacity ( 10 ) lines. Driven by 2-GE 752 DC motors | Baylor Elmagco 6032 Elec Brake 1‐1/4" Wire Rope 6 x 19 EIP IWRC |
| Prime Power Ross Hill/ SCR System,3 Generator Bays, 3 SCR Bays, 1600Amp 3‐Caterpillar 3512's w/ Baylor 1365 KW AC Generators | Cold Start air system, primary Rig Air supply, floor hoisting systems Fuel Capacity 18,000gal & Water Storage Capacity 500bbl |
| Mast / Substructure DSI 142' 650,000# Hook load, 22' Slingshot Crown Block 6‐50" Sheaves 1‐1/4" Groove Fastline 1‐60" 1‐1/4" Groove Hydraulic Jack Skid System | Rotary Load 650,000# Set Back 400,000# Tool Pusher and Crew quarters rig matting boards |
| Top Drive - Traveling Block - Pipe Handling Varco TDS11 VF AC 500 Ton YC225 250 Ton Traveling Block Emsco 27 1/2" Rotary /Drwks Driven NOV ST 80 pipe handling system | Martin‐Decker Type E, Pump SPM & PSI, Top Drive control, SCR system controls & MU/BO Torque Manual Tongs, elevators, slips and clamps for Latshaw supplied DS |
| Mud Pumps 2-National 12P-160 1600 HP Triplex 5,000#WP PSI Fluid Ends and delivery system, Driven by 2‐ GE 752 DC motors | 3,000PSI Accumulator, 120 gal 5 station w/remote 5‐Oilworks 15HP agitatiors |
| Mud System 2 ‐ Tank system (1,000bbl active Capacity) 2‐Vortex Shale Shakers | Derrick Desander 2‐ 12" Cones w/6 x 8 Centrifugal driven by 100HP Motor Derrick 12‐4" Cones w/ 6 x 8 Centrifugal driven by 100HP Mtr |
| BOP Stack Description 11" 5,000# Annular 11" 5,000# Double Ram | Type FC 4 1/16" 5M x 3 1/8" 5M Choke Manifold Derrick Vaccu Flow 1200 Degasser |
