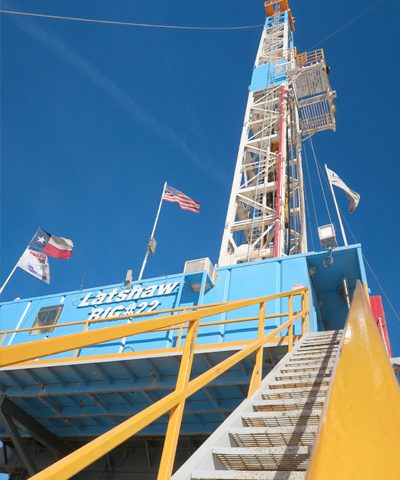

Latshaw Rig 22
Permian Basin :: 1500HP :: Top Drive :: 1600HP Pumps :: Skid System < Back to Rig Fleet List
| MAJOR SYSTEMS | SECONDARY SYSTEMS |
|---|---|
| Drawworks National 110‐UE 1500HP 605,000# Hoisting Capacity ( 10 ) lines, 710,000# Hoisting Capacity ( 12 ) lines. Driven by (2) GE 752 DC motors | Wichita 336 air operated/water cooled disc brake 1‐3/8" WireRope 6 x 19 EIP IWRC |
| Prime Power Schlumberger-Omron/ SCR System, 3 Generator Bays, 4 SCR Bays 3‐Caterpillar 3512B w/ Kato 1365 KW Generators | Cold Start air system, primary Rig Air supply, floor hoisting systems Fuel Capacity 18,000gal & Water Storage Capacity 500bbl |
| Mast / Substructure DSI 142' 1,000,000# Hook load, 27' Slingshot Crown Block 6‐60" Sheaves 1‐3/8" Groove Fastline 1‐60" 1‐3/8" Groove Hydraulic Jack Skid System | Rotary Load 1,000,000# Set Back 600,000# Tool Pusher and Crew quarters rig matting boards |
| Top Drive - Traveling Block - Pipe Handling Varco TDS11SA VF AC 500 Ton Continental Emsco 500 Ton Block SJPetro 27 1/2" Rotary /Independently Driven Varco ST‐80 pipe handling system & IAT rot. MO | Martin‐Decker Type E, Pump SPM & PSI, Top Drive control, SCR system controls & MU/BO Torque Manual Tongs, elevators, slips and clamps for Latshaw supplied DS |
| Mud Pumps 2-RSF 1600 1600HP Triplex 7,500#WP PSI Fluid Ends and delivery system, Driven by (2) GE 752 DC motors | Advanced Pressure 3,000PSI Accumulator, 180 gal, 6 station w/remote 8‐NOV Max2000 10HP Mud agitators |
| Mud System 3 ‐ Tank system (1,200bbl active Capacity) Derrick FLC‐504 Dual Shale Shakers | Derrick Desander 2‐ 12" Cones w/6 x 8 Centrifugal driven by 100HP Motor Derrick 12‐4" Cones w/ 6 x 8 Centrifugal driven by 100HP Mtr |
| BOP Stack Description 13 5/8" 5,000# Annular 13 5/8"10,000# Double Ram 13 5/8"10,000# Single Ram | Type FC 4 1/16"10M x 3 1/16" 10M Choke Manifold NOV D‐1000 Degasser |
