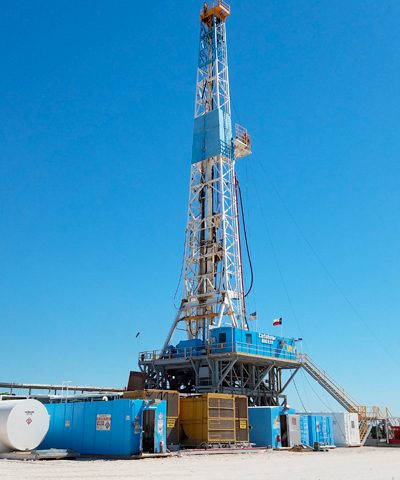

Latshaw Rig 20
Permian Basin :: 1500HP :: Top Drive :: 1600HP Pumps :: Skid System < Back to Rig Fleet List
| MAJOR SYSTEMS | SECONDARY SYSTEMS |
|---|---|
| Drawworks Continential Emsco C‐1 Type II 1500 HP Low low rated 704,900# Hoisting Capacity ( 10 ) lines. #804,100# Hoisting Capacity ( 12 ) lines. Driven by (2) GE 752 DC motors | Baylor 7040 Elmagco Brake 1‐3/8" WireRope 6 x 19 EIP IWRC |
| Prime Power Schlumberger-Omron/ SCR System, 3 Generator Bays, 4 SCR Bays 3‐Caterpillar 3512B w/ Kato 1365 KW Generators | Cold Start air system, primary Rig Air supply, floor hoisting systems Fuel Capacity 18,000gal & 2 tank Water Storage Capacity 500bbl (combined 1000bbl) |
| Mast / Substructure Dreco 142' 1,000,000# Hook load, 26 ft Box Type Crown Block 6‐60" Sheaves 1‐3/8" Fastline 1‐60" 1‐3/8" Groove Hydraulic Jack Skid System | Rotary Load 1,000,000# Set Back 650,000# Tool Pusher and Crew quarters rig matting boards |
| Top Drive - Traveling Block - Pipe Handling CanRig 1250 VF AC 500 Ton 500 Ton Block SJPetro 27 1/2" Rotary Independent drive Varco ST‐80 pipe handling system & IAT rot. MO | Martin‐Decker Type E, Pump SPM & PSI, Top Drive control, SCR system controls & MU/BO Torque Manual Tongs, elevators, slips and clamps for Latshaw supplied DS |
| Mud Pumps 2-Lewco WH-1612 1600HP Triplex 7,500#WP PSI Fluid Ends and delivery system, Driven by (2) GE 752 DC motors‐11 | Church Energy 3,000PSI Accumulator, 180 gal, 6 station w/remote 8‐NOV Max2000 10HP Mud agitators |
| Mud System 2 ‐ Tank system (1,000bbl active Capacity) 2 ‐Derrick FLC model 503 Shale Shakers | Derrick Desander 2‐ 10" Cones w/6 x 8 Centrifugal driven by 100HP Motor Derrick Desilter 12‐4" Cones w/ 6 x 8 Centrifugal driven by 100HP Mtr |
| BOP Stack Description 13 5/8" 5,000# Annular 13 5/8" 5,000# Double Ram | Type FC 4 1/16"10M x 3 1/16" 10M Choke Manifold Double Life D‐ADDP Degasser |
