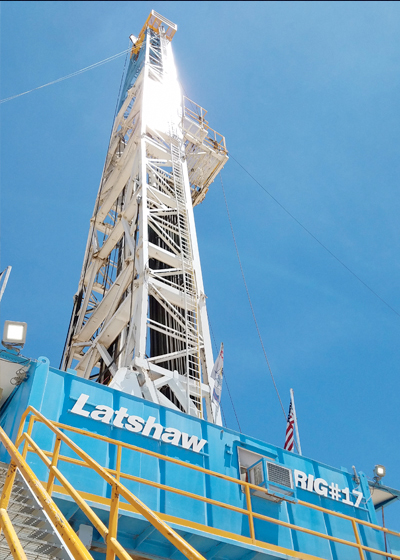

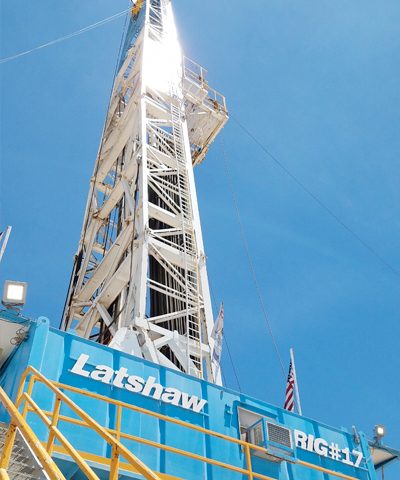

Latshaw Rig 17
Permian Basin :: 2000HP :: Top Drive :: 1600HP Pumps :: Walking System < Back to Rig Fleet List
| MAJOR SYSTEMS | SECONDARY SYSTEMS |
|---|---|
| Drawworks National 1320‐UE 2000HP 805,000# Hoisting Capacity ( 10 ) lines, 940,000# Hoisting Capacity ( 12 ) lines. Driven by (2) GE 752 DC motors | Baylor Elmagco 7838 Auxilary Brake 1‐3/8" WireRope 6 x 19 EIP IWRC |
| Prime Power Schulmberger-Omron/ SCR System, 3 Generator Bays, 4 SCR Bays 3‐Caterpillar 3512B w/ Kato 1365 KW AC Gen Sets | Cold Start air system, primary Rig Air supply, floor hoisting systems Fuel Capacity 18,000gal & Water Storage Capacity 500bbl |
| Mast / Substructure Branham 142' 1,250,000# Hook load with 26' Box on Box type Crown Block 6‐60" Sheaves 1‐3/8" Groove Fastline 1‐60" 1‐3/8" Groove | Rotary Load 1, 250,000# Set Back 750,000# Tool Pusher and Crew quarters rig matting boards w/Veristic Walking System, 4 hydralic feet w/2.4 million # capacity allows walking w/ full rated setback up to 150ft by 40ft on x/y axis |
| Top Drive - Traveling Block - Pipe Handling CanRig 1250 VF AC 500 Ton Block 27 1/2" Rotary /Drwks Driven Varco ST‐80 pipe handling system & IAT rot. MO | Martin‐Decker Type E, Pump SPM & PSI, Top Drive control, SCR system controls & MU/BO Torque Manual Tongs, elevators, slips and clamps for Latshaw supplied DS |
| Mud Pumps 2 ‐Lewco WH‐1612 1600HP Triplex 5,000#WP PSI Fluid Ends and delivery system, Driven by (2) GE 752 DC motors | Church Energy 3,000PSI Accumulator, 180 gal, 6 station w/remote 7‐NOV Max2000 10HP Mud agitators |
| Mud System 2 ‐ Tank system (1,200bbl Capacity) 2 ‐ Brandt King Cobra Venom linear motion | NOV Brandt Desander 3‐ 10" Cones w/6 x 8 Centrifugal driven by 100HP Motor NOV DeSilter 20‐4" Cones w/ 6 x 8 Centrifugal driven by 100HP Mtr |
| BOP Stack Description 13 5/8" 5,000# Annular 13 5/8" 10,000# Double Ram 13 5/8" 10,000# Single Ram | Cameron Type FC 4 1/16"10M x 3 1/16" 10M Choke Manifold NOV Brandt D‐1000‐C Degasser |
