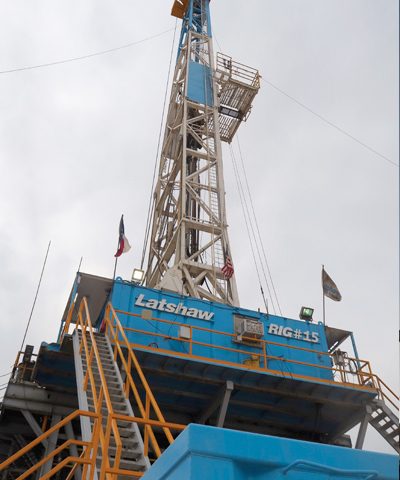

Latshaw Rig 15

Latshaw Rig 15

Permian Basin :: 2000HP :: Top Drive :: 1600HP Pumps  ::  Walking System :: Dual Fuel
  < Back to Rig Fleet List

MAJOR SYSTEMSSECONDARY SYSTEMS
Drawworks
Oilwell E‐2000 2000HP
Low low rated 711,000#
Hoisting Capacity ( 10 ) lines, 822,000# ( 12 ) lines
Driven by (2) GE 752 DC motors
Baylor Elmagco 7838 Auxilary Brake
1‐3/8" WireRope 6 x 19 EIP IWRC
Prime Power
Schlumberger-Omron/ SCR System,
3 Generator Bays, 3 SCR Bays
3‐Caterpillar 3512B w/ Kato 1365 KW AC Gen Sets-Dual Fuel Capable
Cold Start air system, primary Rig Air supply, floor hoisting systems
Fuel Capacity 18,000gal & Water Storage Capacity 500bbl.
Mast / Substructure
Skytop Brewster 142' 1,250,000#
Hook load ( 14 ) lines,
with 30' Box on Box type
Crown Block 7‐60" Sheaves 1‐3/8" Grooved
Fastline 1‐60" 1‐3/8" Grooved
Rotary load 1,000,000# Set Back 600,000#
Tool Pusher and Crew quarters.
w/Veristic Walking System, 4 hydralic feet w/2.4 million # capacity allows walking w/ full rated setback up to 150ft by 40ft on x/y axis
Top Drive - Traveling Block - Pipe Handling
NOV TDS 11SA VF AC 500Ton
Skytop Brewster 500 Ton Block
SJPetro 27 1/2" Rotary /Drwks Driven
NOV ST 80 Iron Roughneck
Martin‐Decker Type E, Pump SPM & PSI, Top Drive control,
SCR system controls & MU/BO Torque
Manual Tongs, elevators, slips and clamps for Latshaw supplied DS
Mud Pumps
2 ‐HH 1600, 1600HP Triplex
7,500#WP PSI Fluid Ends and delivery system,
Driven by (2) GE 752 DC motors
Church Energy 3,000PSI Accumulator, 180 gal, 6 station w/remote
8‐NOV Max2000 10HP Mud agitators
Mud System
2 ‐ Tank system (1,200bbl Capacity)
2 ‐ National 285P Linear Motion Shale Shakers
NOV Brandt Desander 3‐ 10" Cones w/6 x 8 Centrifugal driven by 100HP Motor
NOV DeSilter 20‐4" Cones w/ 6 x 8 Centrifugal driven by 100HP Mtr
BOP Stack Description
13 5/8" 5,000# Annular
13 5/8" 10,000# Double Ram
13 5/8" 10,000# Single Ram
Cameron Type FC
4 1/16"10,000#WP x 3 1/16" 10,000#WP Choke Manifold
NOV Brandt D‐1000‐C Degasser

Download_Rigspecs-2
