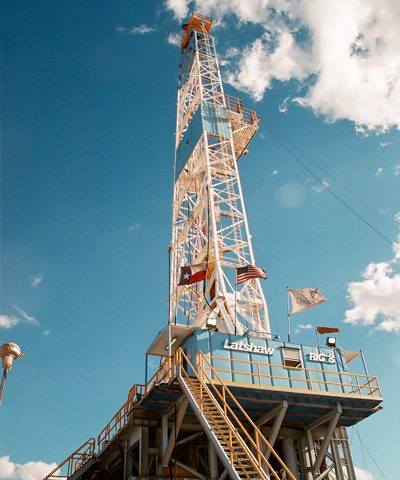

Latshaw Rig 8
Permian Basin :: 2000HP :: Top Drive :: 1600HP Pumps < Back to Rig Fleet List
| MAJOR SYSTEMS | SECONDARY SYSTEMS |
|---|---|
| Drawworks National 1320‐UE 2,000HP 940,000.# (12 lines), 805,000.# (10 lines) Hoisting Capacity, w/twin GE 752 DC motor input | Baylor Elmagco 7838 Auxilary Brake 1‐3/8" WireRope 6 x 19 EIP IWRC |
| Prime Power Schlumberger-Omron/ SCR System, 3 Generator Bays, 4 SCR Bays 3‐Caterpillar 3512B w/ Kato 1365 KW AC Gen Sets | Cold Start air system, primary Rig Air supply, floor hoisting systems Fuel Capacity 18,000gal & Water Storage Capacity 500bbl |
| Mast / Substructure DMI 142' 1,300,000# Hook load with 30' Box on Box type Crown Block 6‐60" Sheaves 1‐3/8" Groove, Fastline 1‐60" 1‐3/8" Grooved | Rotary load 1,300,000# Set Back 780,000# Tool Pusher and Crew quarters, rig matting boards |
| Top Drive - Traveling Block - Pipe Handling NOV TDS11 SA VF AC 500Ton Gardner Denver 550Ton SJPetro 27 1/2" Rotary /Drwks Driven Varco ST‐ 80 Iron Roughneck and IAT rotating MH | Martin‐Decker Type E, Pump SPM & PSI, Top Drive control, SCR system controls Manual Tongs, elevators, slips and clamps for Latshaw supplied DS |
| Mud Pumps 2 ‐ National 12‐P‐160 1600HP 5,000#WP PSI Fluid Ends and delivery system, Driven by (2) GE 752 DC motors | Church Energy 3,000PSI Accumulator, 180 gal, 6 station w/remote 9‐NOV Max2000 10HP Mud agitators |
| Mud System 2 ‐ Tank system (1,200bbl Capacity) 2 ‐ National 285P Linear Motion Shale Shakers | NOV Brandt Desander 3‐ 10" Cones w/6 x 8 Centrifugal driven by 100HP Motor NOV DeSilter 20‐4" Cones w/ 6 x 8 Centrifugal driven by 100HP Mtr |
| BOP Stack Description 13 5/8" 5,000# Annular 13 5/8" 10,000# Double Ram 13 5/8" 10,000# Single Ram | Church Type FC 4‐1/16"10,000#WP x 3‐1/16" 10,000#WP Choke Manifold NOV Brandt D‐1000‐C Degasser |
