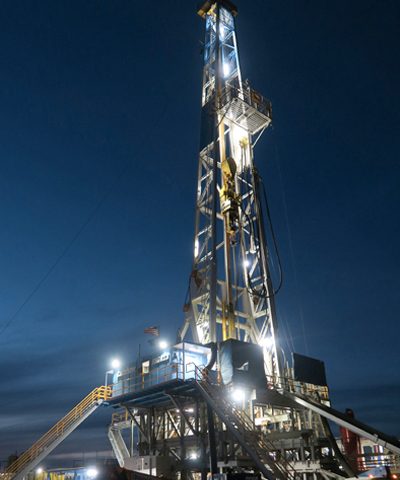

Latshaw Rig 13
Anadarko Basin :: 1000HP :: Top Drive :: 1600HP Pumps :: Walking System < Back to Rig Fleet List
| MAJOR SYSTEMS | SECONDARY SYSTEMS |
|---|---|
| Drawworks Continental Emsco D‐3 Type II 1,000HP Low low rated 525,000# Hoisting Capacity( 10 ) lines Driven by (2) GE 752 DC motors | Baylor 6032 Elmagco Brake 1‐1/4" WireRope 6 x 19 EIP IWRC |
| Prime Power Schlumberger-Omron/ SCR System, 3 Generator Bays, 3 SCR Bays 3‐Caterpillar 3512B w/ Kato 1365 KW AC Gen Sets | Cold Start air system, primary Rig Air supply, floor hoisting systems Fuel Capacity 18,000gal & Water Storage Capacity 500bbl |
| Mast / Substructure IDS 142' 750,000# Hook load with 25' Box on Box type Crown Block 6‐54" Sheaves 1‐1/4" Groove Fastline 1‐60" 1‐1/4" Grooved | Rotary load 750,000# Set Back 450,000# Tool Pusher and Crew quarters rig matting boards w/Veristic Walking System consisting of 4 hydraulic feet w/2.4 million lb capacity. Walks w/full rated setback capacity. Range 150ft x 40ft on x/y axis |
| Top Drive - Traveling Block - Pipe Handling NOV TDS 11SA VF AC 500Ton Ideco 500 Ton Block SJPetro 27 1/2" Rotary /Drwks Driven Varco ST‐ 80 Iron Roughneck & IAT rotating MH | Martin‐Decker Type E, Pump SPM & PSI, Top Drive control, SCR system controls & MU/BO Torque Manual Tongs, elevators, slips and clamps for Latshaw supplied DS |
| Mud Pumps 2 HH 1600, 1600 HP Triplex 5,000#WP PSI Fluid Ends and delivery system, Driven by (2) GE 752 DC motors | Church Energy 3,000PSI Accumulator, 180 gal, 6 station w/remote 8‐NOV Max2000 10HP Mud agitators |
| Mud System 2 ‐ Tank system (1,200bbl Capacity) 2 ‐ National 285P Linear Motion Shale Shakers | NOV Brandt Desander 3‐ 10" Cones w/6 x 8 Centrifugal driven by 100HP Motor NOV DeSilter 20‐4" Cones w/ 6 x 8 Centrifugal driven by 100HP Mtr |
| BOP Stack Description 11" 5,000#Annular 11" 5,000# Double Ram | Cameron Type FC 3 1/16" 5,000#WP x 2 1/16" 5,000#WP Choke Manifold NOV Brandt D‐1000‐C Degasser |
