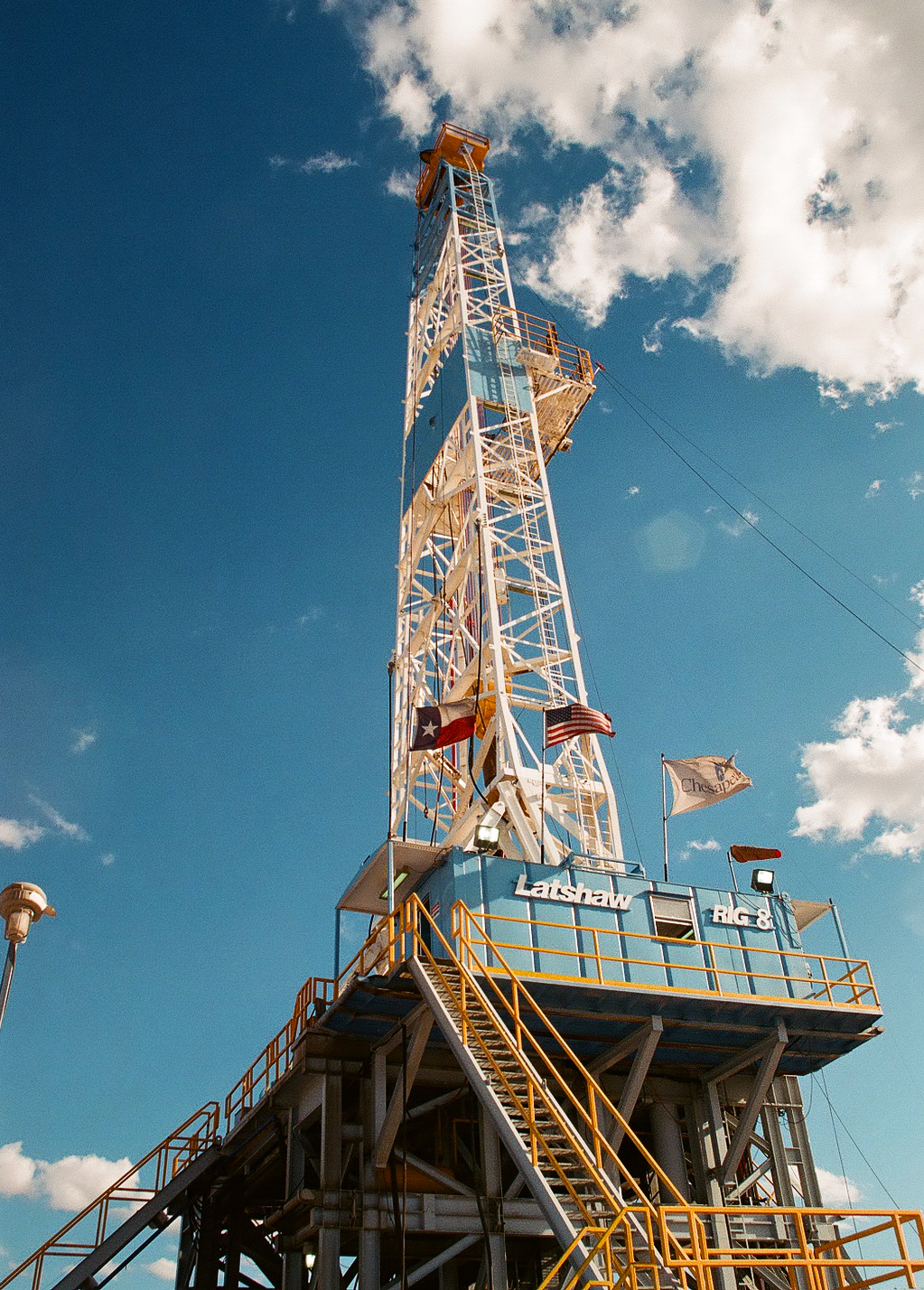

Latshaw Rig 8

Latshaw Rig 8

Permian Basin :: 2000HP  :: Top Drive :: 1600HP Pumps    |  < Back to Rig Fleet List
MAJOR SYSTEMSSECONDARY SYSTEMS
Drawworks
National 1320‐UE 2,000HP
940,000.# (12 lines), 805,000.# (10 lines) Hoisting Capacity,
w/twin GE 752 DC motor input
Baylor Elmagco 7838 Auxilary Brake
1‐3/8" WireRope 6 x 19 EIP IWRC
Prime Power
Schlumberger-Omron/ SCR System,
3 Generator Bays, 4 SCR Bays
3‐Caterpillar 3512B w/ Kato 1365 KW AC Gen Sets
Cold Start air system, primary Rig Air supply, floor hoisting systems
Fuel Capacity 18,000gal & Water Storage Capacity 500bbl
Mast / Substructure
DMI 142' 1,300,000# Hook load with
30' Box on Box type
Crown Block 6‐60" Sheaves 1‐3/8" Groove,
Fastline 1‐60" 1‐3/8" Grooved
Rotary load 1,300,000# Set Back 780,000#
Tool Pusher and Crew quarters, rig matting boards
Top Drive - Traveling Block - Pipe Handling
NOV TDS11 SA VF AC 500Ton
Gardner Denver 550Ton
SJPetro 27 1/2" Rotary /Drwks Driven
Varco ST‐ 80 Iron Roughneck and IAT rotating MH
Martin‐Decker Type E, Pump SPM & PSI, Top Drive control, SCR system controls
Manual Tongs, elevators, slips and clamps for Latshaw supplied DS
Mud Pumps
2 ‐ National 12‐P‐160 1600HP
5,000#WP PSI Fluid Ends and delivery system,
Driven by (2) GE 752 DC motors
Church Energy 3,000PSI Accumulator, 180 gal, 6 station w/remote
9‐NOV Max2000 10HP Mud agitators
Mud System
2 ‐ Tank system (1,200bbl Capacity)
2 ‐ National 285P Linear Motion Shale Shakers
NOV Brandt Desander 3‐ 10" Cones w/6 x 8 Centrifugal driven by 100HP Motor
NOV DeSilter 20‐4" Cones w/ 6 x 8 Centrifugal driven by 100HP Mtr
BOP Stack Description
13 5/8" 5,000# Annular
13 5/8" 10,000# Double Ram
13 5/8" 10,000# Single Ram
Church Type FC
4‐1/16"10,000#WP x 3‐1/16" 10,000#WP Choke Manifold
NOV Brandt D‐1000‐C Degasser
Drill String
8 " and 6‐1/2" Drill Collars
5" Drill Pipe
5" 19.5# G‐105 and S‐135
Heavy weight Drill pipe

Download_Rigspecs-2
