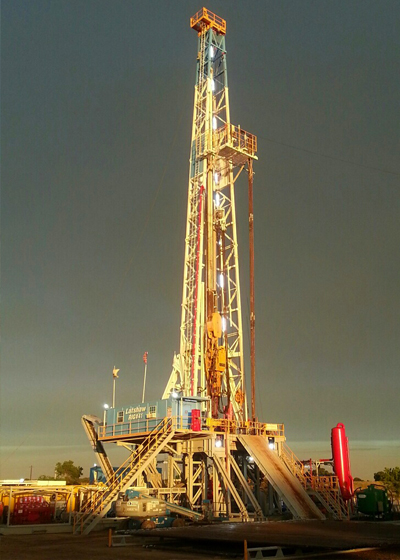

Latshaw Rig 41

Latshaw Rig 41

Anadarko Basin :: 1000HP :: Top Drive :: 1600HP Pumps :: Skid System   |  < Back to Rig Fleet List
MAJOR SYSTEMSSECONDARY SYSTEMS
Drawworks
Continental Emsco D‐3 Type II 1000HP
Low low rated 500,000#
Hoisting Capacity ( 10 ) lines.
w/twin GE 752 DC motor input
Baylor Elmagco 6032 Elec Brake
1 1/4" Wire Rope EIP IWRC
Prime Power
Schlumberger-Omron SCR System,
3 Generator Bays, 4 SCR Bays
3‐Caterpillar 3512 1101 KW Kato Generators
Cold Start air system, primary Rig Air supply,
floor hoisting systems
Fuel Capacity 18,000gal & Water Storage Capacity 500bbl
Mast / Substructure
DSI 142' 650,000# Hook load, 22' Slingshot
Crown Block 6‐50" Sheaves 1‐1/4" Groove
Fastline 1‐60" 1‐1/4" Groove
Hydraulic Jack Skid System
Rotary load 650,000# Set Back 400,000
Tool Pusher and Crew quarters, rig matting boards
Top Drive - Traveling Block - Pipe Handling
CanRig 6027 AC Drive 275 Ton
YC225 250 Ton Traveling Block
Cont‐Emsco 27 1/2" Rotary /Hydraulic driven
NOV ST-80 pipe handling system
Martin‐Decker Type E, Pump SPM & PSI, Top Drive control, SCR system controls
Manual Tongs, elevators, slips and clamps for Latshaw supplied DS
Mud Pumps
2 ‐RSF1600 1600 HP Triplex
w/5,000#WP Fluid ends and delivery system
each driven by 2‐GE‐752 DC motors
Church Energy 3,000PSI Accumulator,
120 gal, 5 station w/remote
5‐Oilworks 15HP Mud Agitatiors
Mud System
2 ‐Tank system (1,000bbl Capacity),
2 ‐Vortex Orbital model 3000 Shale Shakers
Derrick 2‐ 12" Cones w/5 x 6 Centrifugal
driven by 100HP elect mtr
Derrick DeSilter 12‐4" Cones w/ 6 x 8 Centrifugal
driven by 100HP elect mtr
BOP Stack Description
11" 5,000# Annular
11" 5,000# Double Ram
Type FC
4‐1/1"6 5,000# x 2‐1/16 5,000# Choke Manifold
two manual Chokes
Drill String
8' and 6‐1/2" Drill Collars
5" Drill Pipe
5" 19.5# G‐105
Heavy weight Drill pipe

Download_Rigspecs-2
