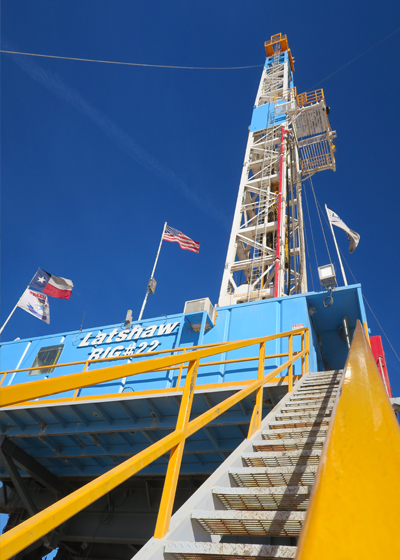

Latshaw Rig 22

Latshaw Rig 22

Permian Basin :: 1500HP :: Top Drive :: 1600HP Pumps :: Skid System   |  < Back to Rig Fleet List
MAJOR SYSTEMSSECONDARY SYSTEMS
Drawworks
National 110‐UE 1500HP
605,000# Hoisting Capacity ( 10 ) lines,
710,000# Hoisting Capacity ( 12 ) lines.
Driven by (2) GE 752 DC motors
Wichita 336 air operated/water cooled disc brake
1‐3/8" WireRope 6 x 19 EIP IWRC
Prime Power
Schlumberger-Omron/ SCR System,
3 Generator Bays, 4 SCR Bays
3‐Caterpillar 3512B w/ Kato 1365 KW Generators
Cold Start air system, primary Rig Air supply, floor hoisting systems
Fuel Capacity 18,000gal & Water Storage Capacity 500bbl
Mast / Substructure
DSI 142' 1,000,000# Hook load, 27' Slingshot
Crown Block 6‐60" Sheaves 1‐3/8" Groove
Fastline 1‐60" 1‐3/8" Groove
Hydraulic Jack Skid System
Rotary Load 1,000,000# Set Back 600,000#
Tool Pusher and Crew quarters rig matting boards
Top Drive - Traveling Block - Pipe Handling
Varco TDS11SA VF AC 500 Ton
Continental Emsco 500 Ton Block
SJPetro 27 1/2" Rotary /Independently Driven
Varco ST‐80 pipe handling system & IAT rot. MO
Martin‐Decker Type E, Pump SPM & PSI, Top Drive control,
SCR system controls & MU/BO Torque
Manual Tongs, elevators, slips and clamps for Latshaw supplied DS
Mud Pumps
2-RSF 1600 1600HP Triplex
7,500#WP PSI Fluid Ends and delivery system,
Driven by (2) GE 752 DC motors
Advanced Pressure 3,000PSI Accumulator, 180 gal, 6 station w/remote
8‐NOV Max2000 10HP Mud agitators
Mud System
3 ‐ Tank system (1,200bbl active Capacity)
Derrick FLC‐504 Dual Shale Shakers
Derrick Desander 2‐ 12" Cones w/6 x 8 Centrifugal driven by 100HP Motor
Derrick 12‐4" Cones w/ 6 x 8 Centrifugal driven by 100HP Mtr
BOP Stack Description
13 5/8" 5,000# Annular
13 5/8"10,000# Double Ram
13 5/8"10,000# Single Ram
Type FC
4 1/16"10M x 3 1/16" 10M Choke Manifold
NOV D‐1000 Degasser
Drill String
8 " and 6‐1/2" Drill Collars
5" Drill Pipe
5" 19.5# G‐105 and S‐135
Heavy weight Drill pipe
