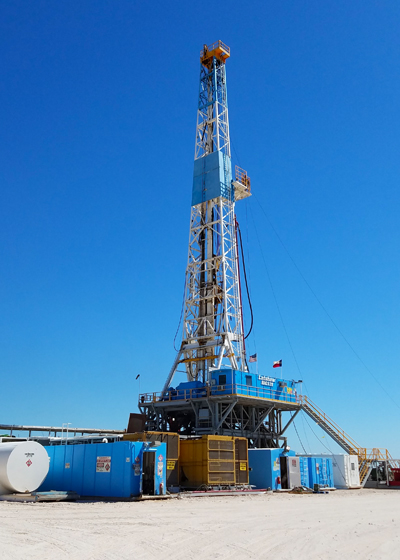

Latshaw Rig 20

Latshaw Rig 20

Permian Basin :: 1500HP :: Top Drive :: 1600HP Pumps :: Skid System   |  < Back to Rig Fleet List

MAJOR SYSTEMSSECONDARY SYSTEMS
Drawworks
Continential Emsco C‐1 Type II 1500 HP
Low low rated 704,900# Hoisting Capacity ( 10 ) lines.
#804,100# Hoisting Capacity ( 12 ) lines.
Driven by (2) GE 752 DC motors
Wichita 336 air operated, water cooled disc
1‐3/8" WireRope 6 x 19 EIP IWRC
Prime Power
Schlumberger-Omron/ SCR System,
3 Generator Bays, 4 SCR Bays
3‐Caterpillar 3512B w/ Kato 1365 KW Generators
Cold Start air system, primary Rig Air supply, floor hoisting systems
Fuel Capacity 18,000gal & 2 tank Water Storage Capacity 500bbl (combined 1000bbl)
Mast / Substructure
Dreco 142' 1,000,000# Hook load, 26 ft Box Type
Crown Block 6‐60" Sheaves 1‐3/8"
Fastline 1‐60" 1‐3/8" Groove
Hydraulic Jack Skid System
Rotary Load 1,000,000# Set Back 650,000#
Tool Pusher and Crew quarters rig matting boards
Top Drive - Traveling Block - Pipe Handling
CanRig 1250 VF AC 500 Ton
500 Ton Block
SJPetro 27 1/2" Rotary Independent drive
Varco ST‐80 pipe handling system & IAT rot. MO
Martin‐Decker Type E, Pump SPM & PSI, Top Drive control,
SCR system controls & MU/BO Torque
Manual Tongs, elevators, slips and clamps for Latshaw supplied DS
Mud Pumps
2-Lewco WH-1612 1600HP Triplex
7,500#WP PSI Fluid Ends and delivery system,
Driven by (2) GE 752 DC motors‐11
Church Energy 3,000PSI Accumulator, 180 gal, 6 station w/remote
8‐NOV Max2000 10HP Mud agitators
Mud System
2 ‐ Tank system (1,000bbl active Capacity)
2 ‐Derrick FLC model 503 Shale Shakers
Derrick Desander 2‐ 10" Cones w/6 x 8 Centrifugal driven by 100HP Motor
Derrick Desilter 12‐4" Cones w/ 6 x 8 Centrifugal driven by 100HP Mtr
BOP Stack Description
13 5/8" 5,000# Annular
13 5/8" 5,000# Double Ram
Type FC
4 1/16"10M x 3 1/16" 10M Choke Manifold
Double Life D‐ADDP Degasser
Drill String
8 " and 6‐1/2" Drill Collars
5" Drill Pipe
5" 19.5# G‐105 and S‐135
Heavy weight Drill pipe

Download_Rigspecs-2
