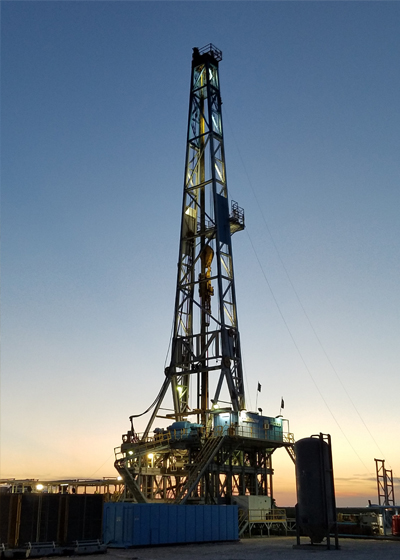

Permian Basin :: 1500HP :: Top Drive :: 1600HP Pumps :: Walking System   |  < Back to Rig Fleet List

MAJOR SYSTEMSSECONDARY SYSTEMS
Drawworks
National 110‐UE 1500HP
Low low rated 605,000# Hoisting Capacity ( 10 ) lines,
710,000# Hoisting Capactiy ( 12 ) lines.
Driven by (2) GE 752 DC motors
Baylor Elmagco 7040 Auxilary Brake
1‐3/8" WireRope 6 x 19 EIP IWRC
Prime Power
NOV/ SCR System, 3 Generator Bays, 4 SCR Bays
3‐Caterpillar 3512C Dual Fuel Capable
W/Kato 1365 KW/ 1950 KVA AC generators
Cold Start air system, primary Rig Air supply, floor hoisting systems
Fuel Capacity 18,000gal & Water Storage Capacity 500bbl
Mast / Substructure
IDS 154' 1,000,000# Hook load
with 28' Box on Box type
Crown Block 6‐60" Sheaves 1‐3/8" Groove
Fastline 1‐60" 1‐3/8" Groove
Rotary Load 1,000,000# Set Back 600,000#
Tool Pusher and Crew quarters rig matting boards
w/Veristic Walking System, 4 hydralic feet w/2.4 million # capacity
allows walking w/ full rated setback up to 150ft by 40ft on x/y axis
Top Drive - Traveling Block - Pipe Handling
Varco TDS 11SA VF AC 500 Ton
Skytop Brewster 500 Ton Block
SJPetro 27 1/2" Rotary /Drwks Driven
Varco ST‐80 pipe handling system & IAT rot. MO
Martin‐Decker Type E, Pump SPM & PSI, Top Drive control,
SCR system controls & MU/BO Torque
Manual Tongs, elevators, slips and clamps for Latshaw supplied DS
Mud Pumps
2 ‐ National 12‐P‐160 1600HP Triplex
7,500#WP PSI Fluid Ends and delivery system,
Driven by (2) GE 752 DC motors
Church Energy 3,000PSI Accumulator, 180 gal, 6 station w/remote
8‐NOV Max2000 10HP Mud agitators
Mud System
2 ‐ Tank system (1,200bbl Capacity)
2 ‐ Brandt 285P linear motion shakers
NOV Brandt Desander 3‐ 10" Cones w/6 x 8 Centrifugal driven by 100HP Motor
NOV DeSilter 20‐4" Cones w/ 6 x 8 Centrifugal driven by 100HP Mtr
BOP Stack Description
13 5/8" 5,000# Annular
13 5/8" 5,000# Double Ram
Type FC
4 1/16"10M x 3 1/16" 10M Choke Manifold
NOV Brandt D‐1000‐C Degasser
Drill String
8 " and 6‐1/2" Drill Collars
5" Drill Pipe
5" 19.5# G‐105 and S‐135
Heavy weight Drill pipe
