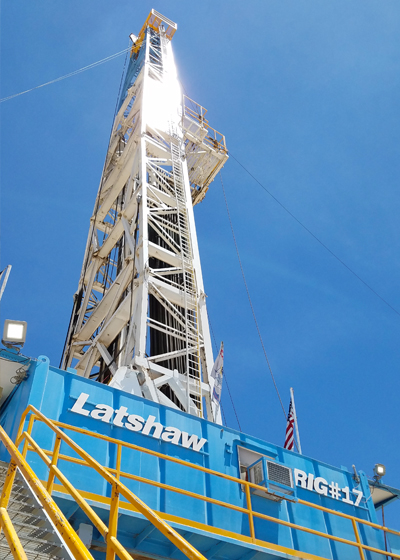

Latshaw Rig 17

Latshaw Rig 17

Permian Basin :: 2000HP :: Top Drive :: 1600HP Pumps :: Walking System   |  < Back to Rig Fleet List

MAJOR SYSTEMSSECONDARY SYSTEMS
Drawworks
National 1320‐UE 2000HP
805,000# Hoisting Capacity ( 10 ) lines, 940,000# Hoisting Capacity ( 12 ) lines.
Driven by (2) GE 752 DC motors
Baylor Elmagco 7838 Auxilary Brake
1‐3/8" WireRope 6 x 19 EIP IWRC
Prime Power
Schulmberger-Omron/ SCR System,
3 Generator Bays, 4 SCR Bays
3‐Caterpillar 3512B w/ Kato 1365 KW AC Gen Sets
Cold Start air system, primary Rig Air supply, floor hoisting systems
Fuel Capacity 18,000gal & Water Storage Capacity 500bbl
Mast / Substructure
Branham 142' 1,250,000# Hook load
with 26' Box on Box type
Crown Block 6‐60" Sheaves 1‐3/8" Groove
Fastline 1‐60" 1‐3/8" Groove
Rotary Load 1, 250,000# Set Back 750,000#
Tool Pusher and Crew quarters rig matting boards
w/Veristic Walking System, 4 hydralic feet w/2.4 million # capacity allows walking w/ full rated setback up to 150ft by 40ft on x/y axis
Top Drive - Traveling Block - Pipe Handling
CanRig 1250 VF AC 500 Ton Block
27 1/2" Rotary /Drwks Driven
Varco ST‐80 pipe handling system
& IAT rot. MO
Martin‐Decker Type E, Pump SPM & PSI, Top Drive control,
SCR system controls & MU/BO Torque
Manual Tongs, elevators, slips and clamps for Latshaw supplied DS
Mud Pumps
2 ‐Lewco WH‐1612 1600HP Triplex
5,000#WP PSI Fluid Ends and delivery system,
Driven by (2) GE 752 DC motors
Church Energy 3,000PSI Accumulator, 180 gal, 6 station w/remote
7‐NOV Max2000 10HP Mud agitators
Mud System
2 ‐ Tank system (1,200bbl Capacity)
2 ‐ Brandt King Cobra Venom linear motion
NOV Brandt Desander 3‐ 10" Cones w/6 x 8 Centrifugal driven by 100HP Motor
NOV DeSilter 20‐4" Cones w/ 6 x 8 Centrifugal driven by 100HP Mtr
BOP Stack Description
13 5/8" 5,000# Annular
13 5/8" 10,000# Double Ram
13 5/8" 10,000# Single Ram
Cameron Type FC
4 1/16"10M x 3 1/16" 10M Choke Manifold
NOV Brandt D‐1000‐C Degasser
Drill String
8 " and 6‐1/2" Drill Collars
5" Drill Pipe
5" 19.5# G‐105 and S‐135
Heavy weight Drill pipe
