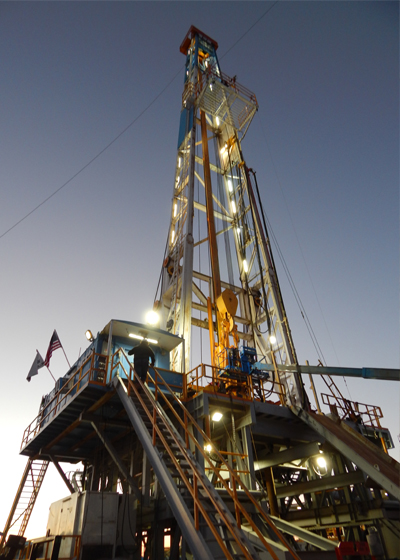

Latshaw Rig 14

Latshaw Rig 14

Anadarko Basin :: 1000HP :: Top Drive :: 1600HP Pumps :: Walking System   |  < Back to Rig Fleet List
Continental Emsco C1 Type II 1500HP
Low Low rated 704,900#
Hoisting Capacity (10) lines
with twin GE 752 DC motor input
Wichita Air acutuated/water‐cooled 236 disc brake
1‐1/4" WireRope 6 x 19 EIP IWRC
Prime Power
Schulumberger-Omron/ SCR System,
3 Generator Bays, 3 SCR Bays
3‐Caterpillar 3512B w/ Kato 1365 KW AC Gen Sets
Cold Start air system, primary Rig Air supply, floor hoisting systems
Fuel Capacity 18,000gal & Water Storage Capacity 500bbl
Mast / Substructure
IDS 142' 750,000# Hook load
with 25' Box on Box type
Crown Block 6‐52" Sheaves 1‐1/4" Groove
Fastline 1‐60" 1‐1/4" Grooved
Rotary load 750,000# Set Back 450,000#
Tool Pusher and Crew quarters rig matting boards
w/Veristic Walking System consisting of 4 hydraulic feet
w/2.4 million lb capacity. Walks w/full rated setback capacity.
Range 150ft x 40ft on x/y axis
Top Drive - Traveling Block - Pipe Handling
Gardner Denver 400 Ton Block
SJPetro 27 1/2" Rotary /Drwks Driven
Varco ST‐ 80 Iron Roughneck
& IAT rotating MH
Martin‐Decker Type E, Pump SPM & PSI, Top Drive control,
SCR system controls & MU/BO Torque
Manual Tongs, elevators, slips and clamps for Latshaw supplied DS
Mud Pumps
2 Cont Emsco FD-1600 1600HP Triplex
5,000#WP PSI Fluid Ends and delivery system,
Driven by (2) GE 752 DC motors
Church Energy 3,000PSI Accumulator, 180 gal, 6 station w/remote
7‐NOV Max2000 10HP Mud agitators
Mud System
2 ‐ Tank system (1,200bbl Capacity)
2 ‐ National 285P Linear Motion Shale Shakers
NOV Brandt Desander 3‐ 10" Cones w/6 x 8 Centrifugal driven by 100HP Motor
NOV DeSilter 20‐4" Cones w/ 6 x 8 Centrifugal driven by 100HP Mtr
BOP Stack Description
11" 5,000# Annular
11"10,000# Double Ram
Cameron Type FC
3 1/16"5,000#WP x 2 1/16" 5,000#WP Choke Manifold
NOV Brandt D‐1000‐C Degasser
Drill String
8 " and 6‐1/2" Drill Collars
5" Drill Pipe
5" 19.5# G‐105 and S‐135
Heavy weight Drill pipe
